Danfoss Hansen® FD83 Series Coupling

The Danfoss Hansen® FD83 Series Coupling is designed for fluid transfer and electronics cooling applications where full flow, fluid compatibility, and safety are essential. Built with identical coupling halves and a dual-interlock safety system, the FD83 helps eliminate spills and supports reliable maintenance in demanding environments.

Data Center Liquid Cooling

Safe, Spill-Free Fluid Transfer

The FD83 coupling uses two interlock features to prevent accidental opening and unsafe disconnection. Valves cannot open until the coupling halves are fully mated, and the coupling halves cannot be disconnected until both halves are closed.

Key Features

  • Dual interlock safety design
  • Full-flow coupling performance
  • No-spill design for service and maintenance
  • Identical coupling halves
  • 303 stainless steel body construction
  • EPDM-P peroxide-cured seals
  • Broad fluid compatibility
  • Wide range of end connection options
  • Maintenance and service friendly
  • Certified wetted seals per IEC/UL 62368-1

Applications & Markets

  • Data centers
  • Thermal management systems
  • Industrial fluid transfer
  • Electronics cooling applications

Note: The FD83 Series is not intended for two-phase cooling applications.

Physical Characteristics

Coupling Size Max Operating Pressure Min Burst Pressure Rated Flow Fluid Loss Cv Value
1 in. 150 psi / 10 bar 300 psi / 20 bar 50 GPM / 189 LPM 30 cc max. 5.0
2 in. 150 psi / 10 bar 300 psi / 20 bar 211 GPM / 800 LPM 127 cc max. 12

Materials & Compatibility

The FD83 Series is built with a standard 303 stainless steel body and EPDM-P peroxide-cured seals. Passivated stainless steel construction provides broad fluid compatibility, while the seal material supports a reference temperature range of -40°C to 150°C (-40°F to 302°F).

Seal Elastomer Temperature Range °C Temperature Range °F
EPDM-P (Peroxide Cured) -40°C to 150°C -40°F to 302°F

Available Connection Options

  • Female NPTF
  • Female BSPP
  • Male BSPP
  • Male ORB
  • Hose barb connections
  • 90° hose barb configurations
  • Sanitary flange connections
  • 1G crimp connections

Additional end connection configurations are available upon request.

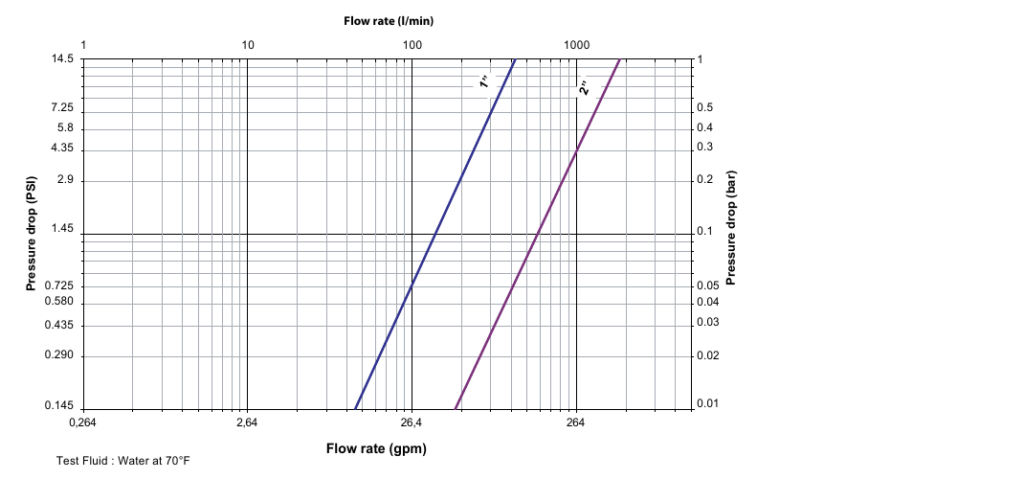

Flow Data

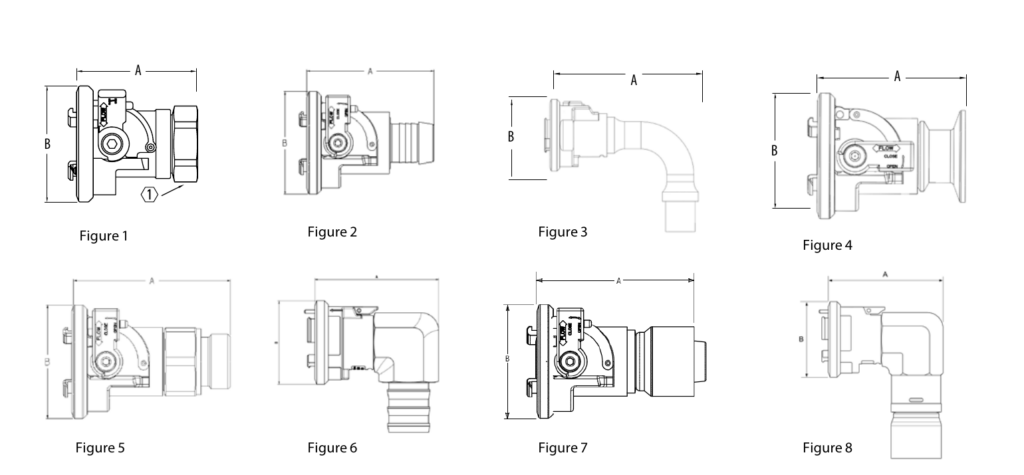

Dimensions

Part Number Body Size Port Size Thread / Type Fig. A B Hex
FD83-2052-16-16 1 1 1-11-½ Female NPTF 1 95.5 mm / 3.76 in. 71.6 mm / 2.82 in. 41 mm / 1.63 in.
FD83-2052-12-16 1 ¾ ¾-14 Female NPTF 1 70.1 mm / 2.76 in. 71.6 mm / 2.82 in. 41 mm / 1.63 in.
FD83-2046-16-16 1 1 1” Hose Barb EHW194 hose 2 84.2 mm / 3.31 in. 71.6 mm / 2.82 in. –
FD83-2092-16-16 1 1 1” Hose Barb 90° EHW194 hose 3 142.3 mm / 5.60 in. 71.6 mm / 2.82 in. –
FD83-2096-16-16 1 1 1 5/16-12 Male ORB ISO 11926-3 5 95.5 mm / 3.76 in. 71.6 mm / 2.82 in. 41 mm / 1.63 in.
FD83-2140-16-16 1 1 G1-11 Male BSPP ISO 1179-2 5 95.5 mm / 3.76 in. 71.6 mm / 2.82 in. 41 mm / 1.63 in.
FD83-2126-16-16 1 1 G1-11 Female BSPP ISO 1179-1 1 84.3 mm / 3.32 in. 71.6 mm / 2.82 in. 41 mm / 1.63 in.
FD83-2128-16-16 1 1 Sanitary Flange 1”-DIN32676/ISO2852/ BS4825 4 79.6 mm / 3.13 in. 71.6 mm / 2.82 in. –
FD83-2126-32-32 2 2 G2-11 Female BSPP ISO 1179-1 1 112.0 mm / 4.43 in. 105.3 mm / 4.15 in. 70 mm / 2.76 in.
FD83-2046-32-32 2 2 2’’ Hose barb EHW194 hose 2 156.8 mm / 6.17 in. 105.3 mm / 4.15 in. –
FD83-2046-24-32 2 1 ½ 1 1/2” Hose Barb EHW194 hose 2 149.8 mm / 5.90 in. 105.3 mm / 4.15 in. –
FD83-2046-20-32 2 1 ¼ 1 4” Hose Barb EHW194 hose 2 141.6 mm / 5.57 in. 105.3 mm / 4.15 in. –
FD83-2128-32-32 2 2 Sanitary Flange 2”-DIN32676/ISO2852/BS4825 4 102.4 mm / 4.03 in. 105.3 mm / 4.15 in. –
FD83-2052-32-32 2 2 2-11-½ Female NPT 1 112.6 mm / 4.43 in. 105.3 mm / 4.15 in. 70 mm / 2.76 in.
FD83-2092-32-32 2 2 2″ Hose barb EHW194 hose 6 155.2 mm / 6.11 in. 105.3 mm / 4.15 in. –
FD83-2175-32-32 2 2 G2-11 Male BSPP ISO 1179-3 5 134.3 mm / 5.29 in. 105.3 mm / 4.15 in. 75 mm / 2.95 in.
FD83-2168-16-16 1 1 1” 1G Crimp 8 102.8 mm / 4.05 in. 71.6 mm / 2.82 in. –
FD83-2170-16-16 1 1 1” 1G Crimp 7 106.1 mm / 4.20 in. 71.6 mm / 2.82 in. –
FD83-2170-32-32 2 2 2” 1G Crimp 7 148.3 mm / 5.84 in. 105.3 mm / 4.15 in. –
FD83-2168-32-32 2 2 2” 1G Crimp 8 153.2 mm / 6.03 in. 105.3 mm / 4.15 in. –

Other end connections are available upon request.

Designed for Reliable Cooling Performance

Whether used in data centers, advanced thermal management systems, or industrial fluid transfer applications, the Danfoss Hansen® FD83 Series Coupling delivers dependable, spill-free performance while simplifying service and helping protect operators during maintenance.
